TSW304
TSW304

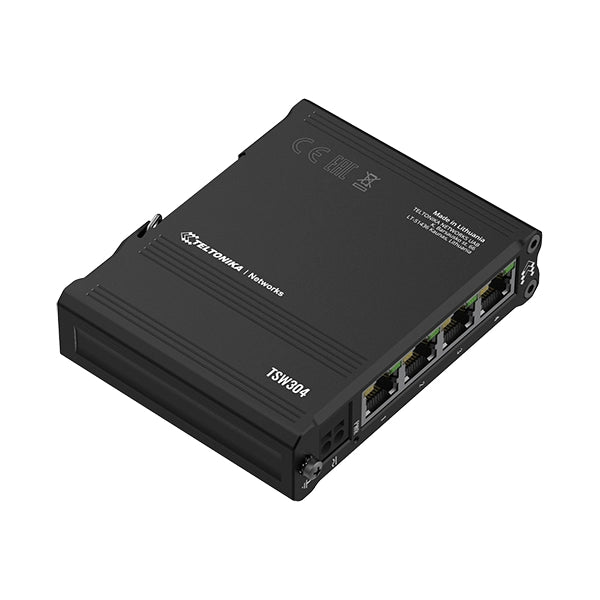

TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount.
Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.
Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount.
10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput.
2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).
INTERFACES | |
Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
PERFORMANCE SPECIFICATIONS | |
Bandwidth (Non-blocking) | 8 Gbps |
Packet buffer | 128 KB |
MAC address table size | 2K entries |
Jumbo frame support | 9216 bytes |
POWER | |
Connector | 2-pin power socket |
Input voltage range | 7 - 57 VDC; 9 - 40 VAC |
PoE (passive) | Passive PoE. Possibility to power up through first LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
Power consumption | Idle: 0.26 W / Max: 1.44 W |
PHYSICAL INTERFACES (PORTS, LEDS) | |
Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
Status LEDs | 1 x Power LED, 8 x LAN status LEDs |
Power | 1 x 2-pin power socket |
Ground | 1 x Grounding screw |
PHYSICAL SPECIFICATION | |
Casing material | Anodized aluminum housing and panels |
Dimensions (W x H x D) | 102x25x81.5 mm |
Weight | 210 g |
Mounting options | Integrated DIN rail bracket, flat surface placement |
OPERATING ENVIRONMENT | |
Operating temperature | -40 C to 75 C |
Operating humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS | |
Regulatory | CE, REACH, RoHS, WEEE |
TSW304 | UKCA, FCC, IC, CB, RCM |
SAFETY | |
Standards | EN IEC 62368-1:2020+A11:2020 |
