Teltonika Networks

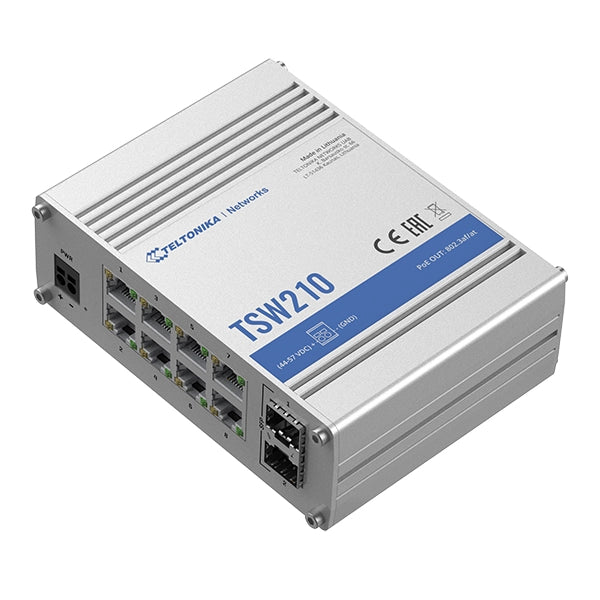

TSW210

TSW210

The TSW210 is an industrial unmanaged switch for centralizing your resources.

Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed.

Durable, rugged aluminum housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings.

2-pin industrial DC power socket with an input voltage range of 7-57 VDC.

INTERFACES
Ethernet 8 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
2 x SFP ports
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 20 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
POWER
Connector 2 pin industrial DC power socket
Input voltage range 7-57 VDC
Power consumption Idle: ~1.03 W / Max: 3.71 W
PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fiber 2 x SFP ports
Status LED’s 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
Power 1 x 2 pin industrial DC power socket
Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Full aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 500 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
Ingress Protection Rating IP30
