TSW101
TSW101

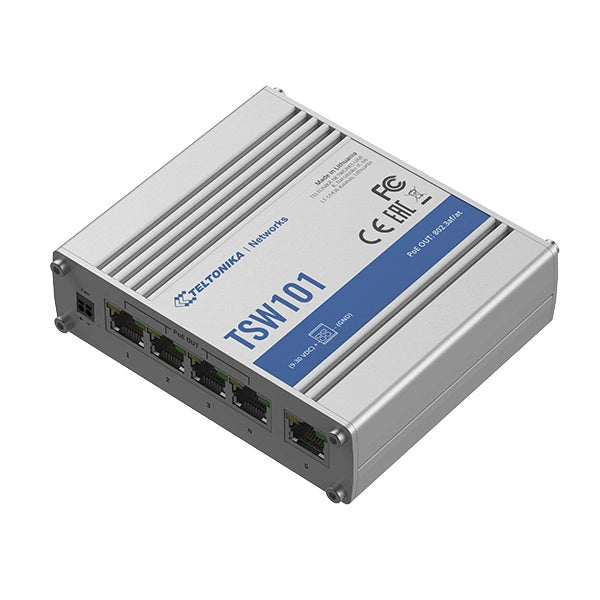

TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch.
Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards.
A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.
Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts.
10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.
Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously.
| INTERFACES | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| POE | |
| PoE ports | Port 1- 4 |
| PoE standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 60 W |
| Maximum Ethernet cable length | 100 m |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| POWER | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9-30 VDC |
| Input voltage range for PoE | 9-30 VDC |
| Power consumption | Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W |
| PHYSICAL INTERFACES (PORTS, LEDS) | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LED’s | 1 x Power LED, 10 x LAN status LED’s |
| Power | 1 x 2-pin industrial DC power socket |
| Ground | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing material | Aluminum housing |
| Dimensions (W x H x D) | 115 x 32 x 95 mm |
| Weight | 354 g |
| Mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to +75 °C |
| Operating humidity | 10 % to 90 % non condensing |
| Ingress Protection Rating | IP30 |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE, REACH, RoHS, WEEE |
| TSW101 CE | |
| TSW101 UKCA | |
| TSW101 FCC | |
| TSW101 IC | |
| TSW101 CB | |
| TSW101 RCM | |
| E-Mark | |
| SAFETY | |
| Standards | EN IEC 62368-1:2020+A11:2020 |
