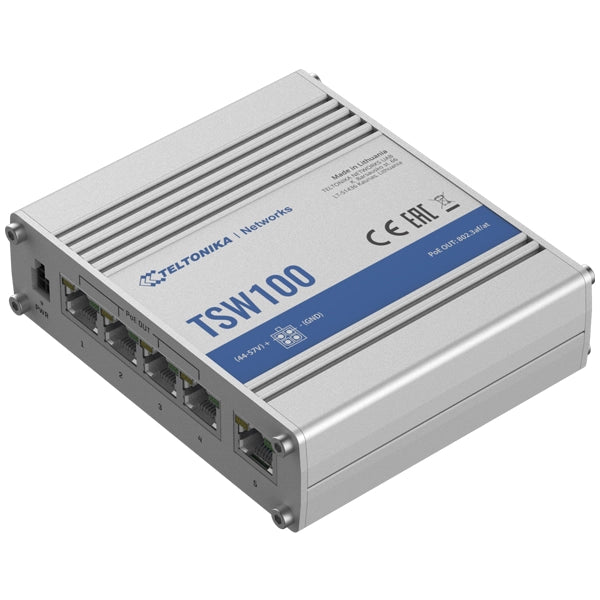

TSW100 is the first industrial unmanaged switch from Teltonika Networks.
Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
|LAN||5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover|
|PoE ports||Port 1- 4|
|PoE standards||802.3af and 802.3at|
|PoE Max Power per Port (at PSE)||30 W|
|Total PoE Power Budget (at PSE)||120 W|
|Bandwidth (Non-blocking)||10 Gbps|
|Packet buffer||128 KB|
|MAC address table size||2K entries|
|Connector||4-pin industrial DC power socket|
|Input voltage range||7-57 VDC|
|Input voltage range for PoE||44-57 VDC|
|Power consumption||Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W|
|PHYSICAL INTERFACES (PORTS, LEDS)|
|Ethernet||5 x RJ45 ports, 10/100/1000 Mbps|
|Status LEDs||1 x Power LED, 10 x LAN status LEDs|
|Power||1 x 4-pin DC connector|
|Ground||1 x Grounding screw|
|Casing material||Full aluminum housing|
|Dimensions (W x H x D)||115 x 32 x 95 mm|
|Mounting||DIN rail or wall mounting (additional kit needed), flat surface placement|
|Operating temperature||-40 °C to +75 °C|
|Operating humidity||10 % to 90 % non condensing|
