Teltonika Networks

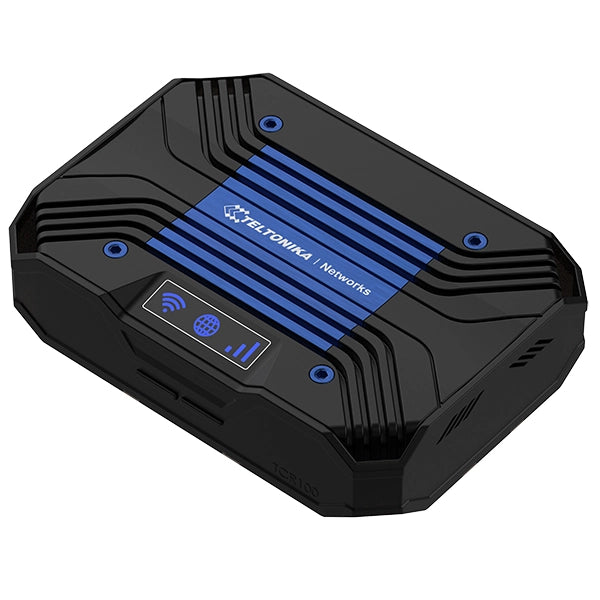

TCR100

TCR100

This router represents our extensive industrial IoT experience brought straight to your home.

With 4G LTE-A technology you can use TCR100 as a primary or a backup connectivity source.

Two Ethernet interfaces and Dual-band Wi-Fi allow to connect multiple devices with ease!

TCR100 features connectivity indicators, Wi-Fi, and Wi-Fi Protected buttons for quick and simple setup.

Reliable, secure and easy to use – TCR100 is the perfect choice for any home network.

MOBILE
Mobile module 4G+ (LTE-A) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge mode Direct connection (bridge) between mobile ISP and device on LAN
WIRELESS
Wireless mode 2.4 GHz (802.11 b/g/n, 2x2 MIMO), 5 GHz (802.11 ac, 1x1 MIMO), Access Point (AP), Station (STA)
WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, SMS OTP, MAC auth, built in customizable landing page, walled garden
Wireless mesh/roaming Wireless mesh (802.11s), fast roaming (802.11r)
ETHERNET
WAN 1 x WAN port (can be configured as LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
NETWORK
Routing Static routes, Dynamic routes
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, NAT rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Tag based VLAN separation
Mobile quota control Custom data limits for SIM card
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPSec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
MODBUS
MODBUS TCP SLAVE
ID filtering Respond to one ID in range [1;255] or any
Allow remote access Allow access through WAN
Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT GATEWAY
Gateway Allows sending commands and receiving data from MODBUS Master trough MQTT broker
DNP3
Supported modes TCP Master, DNP3 Outstation
DATA TO SERVER
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)
IoT PLATFORMS
Clouds of things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
SYSTEM CHARACTERISTICS
CPU QCA9531, MIPS 24kc, 650 MHz
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption 3.7 W average, 9.3 W max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 2 x RJ45 ports, 10/100 Mbps
Status LEDs 1 x Internet, 1 x WiFi, 3 x Mobile connection strength, 2 x Ethernet status
SIM 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder (Embedded SIM variant available)
Antenna 2 x SMA for LTE, 2 x Internal for 2.4 GHz WiFi, 1 x Internal for 5 GHz WiFi
Power 1 x 4 pin DC connector
WPS WPS activation button
WiFi On/Off WiFi enable/disable button
Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
Casing material Plastic housing with aluminum screws and heatsink
Dimensions (W x H x D) 150 x 37 x 105 mm
Weight 376 g
Mounting options Flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
