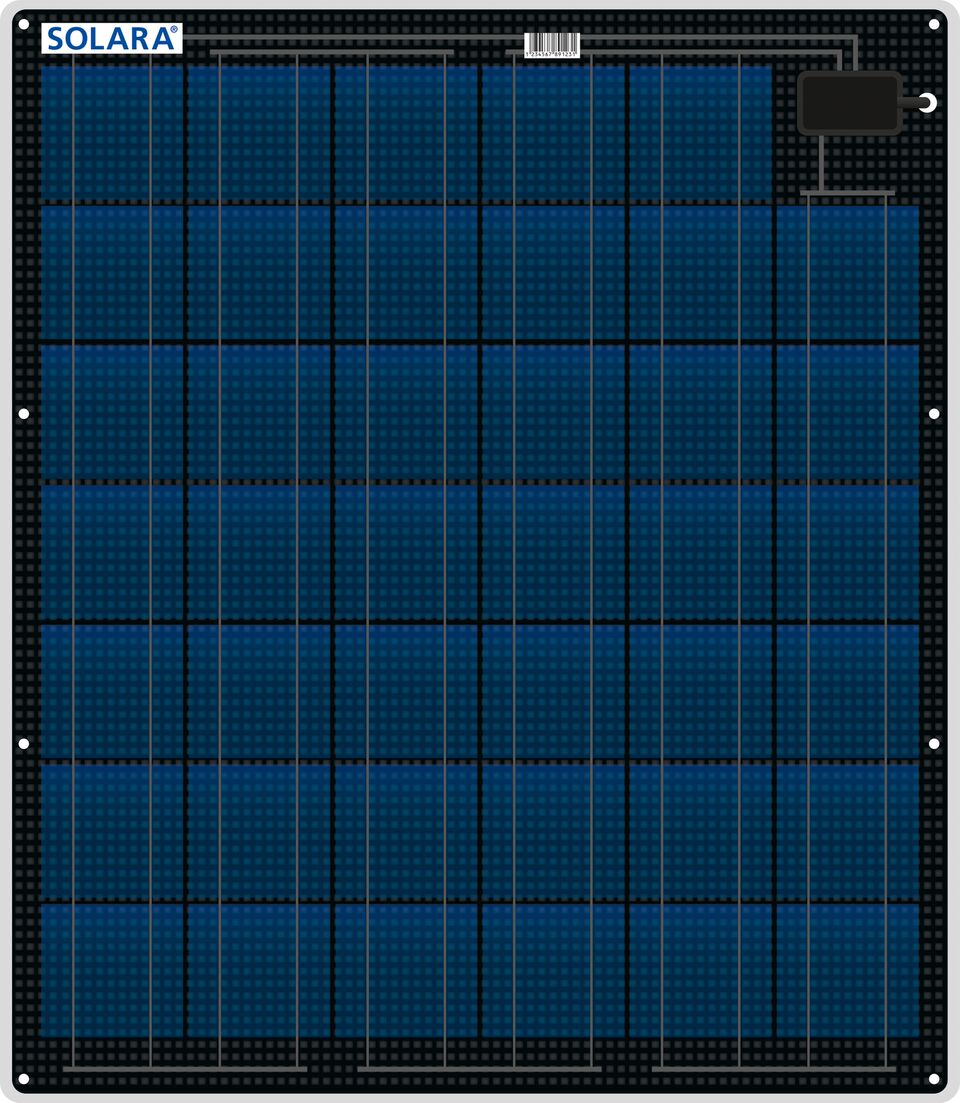

Solara
S320P41 (12V/80Wp/320Wh/d)
S320P41 (12V/80Wp/320Wh/d)
| Type | S320P41 |
|---|---|
| Daily output in summer in Germany (Wh/d) | 320 |
| Rated output (Pmpp) Wp | 80 |
| Short-circuit current (Isc) A | 3,84 |
| Open-circuit voltage (Uoc) V | 25,87 |
| Voltage (Umpp) | 21,81 |
| Current (Impp) A | 3,62 |
Appearance and design.
- Stability and maximum heat dissipation due to aluminum-sandwich-plate.
- Thanks to innovative cell-chaining technique semi-flexible (up 3%) mountable.
- Walkable.
- Extremely resistant protective Nowoflon film on front and back.
- Particularly flat and glued screwed cable outlet with strain relief.
- Well known since 20 years.
- Already prepared cable gland in the carrier plate.
- 4 kg.
Long lifetime even under extreme conditions.
- Extremely high yields through the use of crystalline high performance cells.
- Maximum daily yield by additional single cells.
- Powerful low-light performance – High yields even under cloudy and partially shaded conditions.
- External cell protector with bypass diodes offers protection against cell overheating (Hot-Spots) is included.
