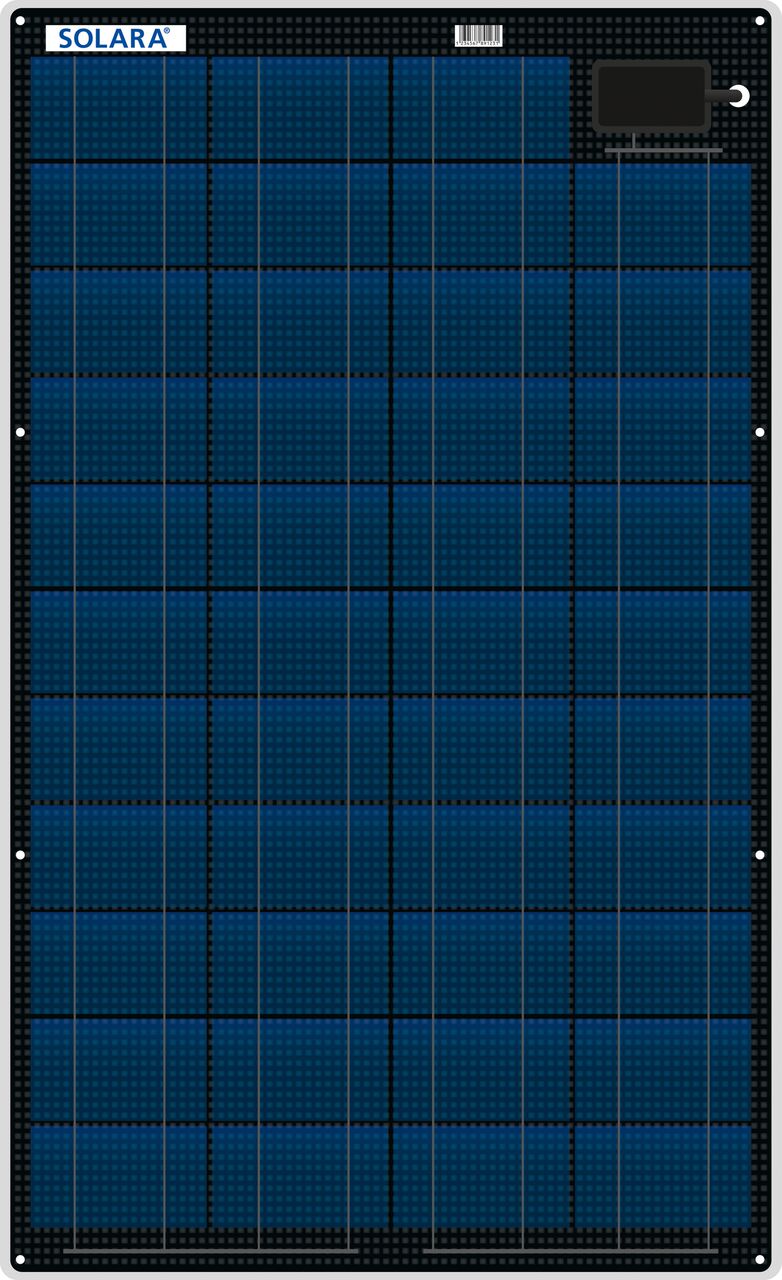

S170P43 (12V/41Wp/170Wh/d)

S170P43 (12V/41Wp/170Wh/d)

Type S170P43
Daily output in summer in Germany (Wh/d) 170
Rated output (Pmpp) Wp 41
Short-circuit current (Isc) A 1,92
Open-circuit voltage (Uoc) V 27,13
Voltage (Umpp) 22,88
Current (Impp) A 1,81


Appearance and design.

  • Stability and maximum heat dissipation due to aluminum-sandwich-plate.
  • Thanks to innovative cell-chaining technique semi-flexible (up 3%) mountable.
  • Walkable.
  • Extremely resistant protective Nowoflon film on front and back.
  • Particularly flat and glued screwed cable outlet with strain relief.
  • Well known since 20 years.
  • Already prepared cable gland in the carrier plate.
  • 5 kg.

Long lifetime even under extreme conditions.

  • Extremely high yields through the use of crystalline high performance cells
  • Maximum daily yield by additional single cells
  • Powerful low-light performance – High yields even under cloudy and partially shaded conditions
  • External cell protector with bypass diodes offers protection against cell overheating (Hot-Spots) is included
