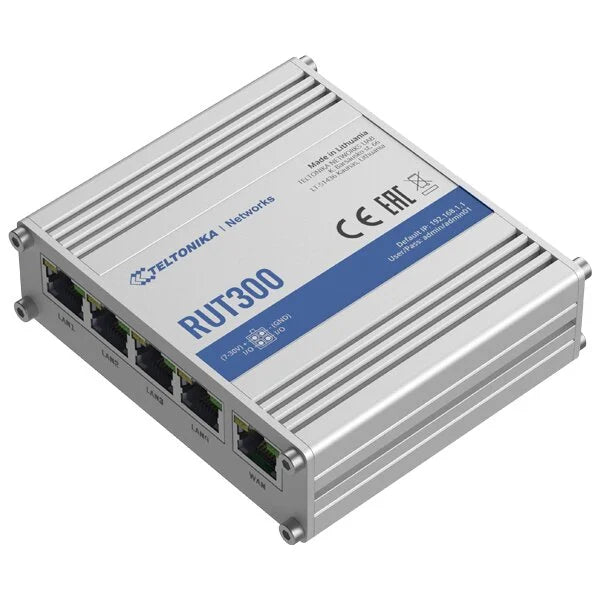

RUT300
RUT300
The RUT300 is a small, but powerful Ethernet router perfect for challenging industrial networking tasks as well as general networking applications.
Five Ethernet ports, two configurable digital Inputs/Outputs, and a USB port to easily connect the various equipment to the internet.
Preconfigured Firewall for immediate security and multiple top-rated VPNs.
Passive PoE helps to reduce deployment complexity.
Economical but a feature-rich industrial device that comes with all the benefits of RutOS and Remote Management System (RMS).
ETHERNET | |
WAN | 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover |
LAN | 4 x LAN ports (can be configured as secondary WAN ports), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover |
NETWORK | |
Routing | Static routes, Dynamic routes |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forwards, traffic rules, NAT rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relay |
QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network backup | Wired WAN options, each of which can be used as an automatic Failover |
Load balancing | Balance Internet traffic over multiple WAN connections |
SSHFS | Possibility to mount remote file system via SSH protocol |
SECURITY | |
Authentication | Pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port and tag based VLAN separation |
WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
IPSec | IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
GRE | GRE tunnel |
PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3 support |
Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | Method of building scalable IPsec VPNs |
SSTP | SSTP client instance support |
ZeroTier | ZeroTier VPN client support |
WireGuard | WireGuard VPN client and server support |
MODBUS | |
MODBUS TCP SLAVE | |
ID filtering | Respond to one ID in range [1;255] or any |
Allow remote access | Allow access through WAN |
Custom registers | MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
MODBUS TCP MASTER | |
Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
Supported data formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
MQTT GATEWAY | |
Gateway | Allows sending commands and receiving data from MODBUS Master through the MQTT broker |
DNP3 | |
Supported modes | TCP Master, DNP3 Outstation |
DATA TO SERVER | |
Protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
FOTA | Firmware update from server, automatic notification |
SSH | SSH (v1, v2) |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP trap |
JSON-RPC | Management API over HTTP/HTTPS |
MODBUS | MODBUS TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
SYSTEM CHARACTERISTICS | |
CPU | QCA9531, MIPS 24kc, 650 MHz |
RAM | 64 MB, DDR2 |
FLASH storage | 16 MB, SPI Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW/configuration from server |
RMS | Update FW/configuration for multiple devices at once |
Keep settings | Update FW without losing current configuration |
USB | |
Data rate | USB 2.0 |
Applications | Samba share, USB-to-serial |
External devices | Possibility to connect external HDD, flash drive, printer |
Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
INPUT/OUTPUT | |
Configurable I/O | 2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA |
Events | Email, RMS |
I/O juggler | Allows to set certain I/O conditions to initiate event |
POWER | |
Connector | 4 pin industrial DC power socket |
Input voltage range | 7 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
Power consumption | Idle: 1.3 W, Max: 3 W |
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
Ethernet | 5 x RJ45 ports, 10/100 Mbps |
I/Os | 2 x Configurable digital Inputs/Outputs on 4 pin power connector |
Status LEDs | 5 x ETH status, 1 x Power |
Power | 1 x 4 pin DC connector |
USB | 1 x USB A port for external devices |
Reset | Reboot/User default reset/Factory reset button |
PHYSICAL SPECIFICATION | |
Casing material | Aluminium housing with DIN rail mounting option |
Dimensions (W x H x D) | 100 x 30 x 85 mm |
Weight | 229 g |
Mounting options | DIN rail, flat surface placement |
OPERATING ENVIRONMENT | |
Operating temperature | -40 C to 75 C |
Operating humidity | 10 % to 90 % non-condensing |
