Teltonika Networks

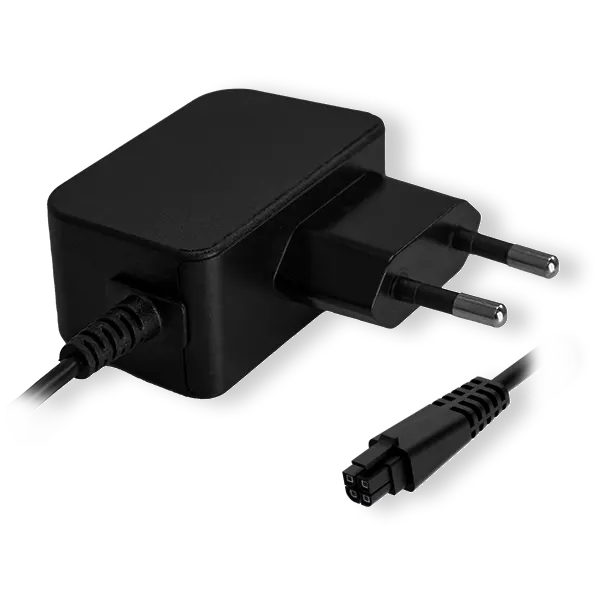

EU Power Supply, 9W
EU Power Supply, 9W
| General | |
| Input voltage | 100 - 240 VAC |
| Input frequency | 50/60 Hz |
| Input current | 0.45 A |
| Input connector | EU (Type C) |
| Output voltage | 9 VDC |
| Output current | 1.0 A |
| Output connector | 4pin, 3 mm pitch |
| Weight | 79 g |
|
Additional |
|
|---|---|
| Input voltage absolute maximum | 90 - 264 VAC |
| Input frequency absolute maximum | 47 - 63 Hz |
| Inrush currect | 60 A |
| Output voltage absolute maximum | 8.55 – 9.45 VDC |
| Short circuit protection | ✓ |
| HIPOT (dielectric withstand test) | Primary to Secondary: 4000 VDC |
| MTBF | 30000 h |
| PSU efficiency standard | DoE Level VI |
| Certification |
Safety: IEC 62368-1:2014/A11:2017 (CB Scheme) EMC: EN 55032:2015, EN55035:2017, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004, EN 61347-1:2015, EN 61347-2-13:2014/A1:2017, EN 62493:2015 |
