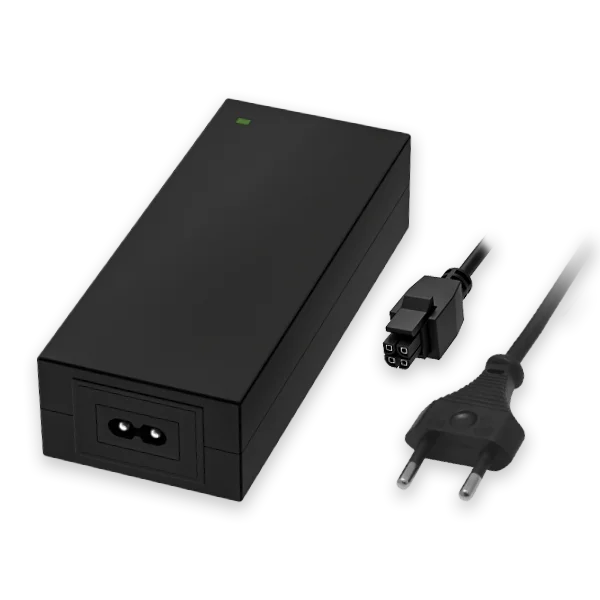

EU Power Supply, 62W
EU Power Supply, 62W
General | |
Input voltage | 100 - 240 VAC |
Input frequency | 50/60 Hz |
Input current | 1.5 A |
Input connector | EU (Type C) |
Output voltage | 48 VDC |
Output current | 1.3 A |
Output connector | 4pin, 3 mm pitch |
Weight | 330 g |
Additional |
|
Input voltage range | 90 - 264 VAC |
Input frequency range | 47 - 63 Hz |
Maximum input inrush current | 50 A |
Output voltage maximum deviation | 45.6 - 50.4 VDC |
Short circuit protection | ✓ |
HIPOT (dielectric withstand test) | Primary to Secondary: 4000 VDC |
MTBF | 50000 h |
Certification |
Safety: EC/EN 61558-1:2005+A1:2009, IEC/EN 61558-2-16:2009+A1:2013 (CB Scheme) EMC: EN 55032:2012+AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015 |
