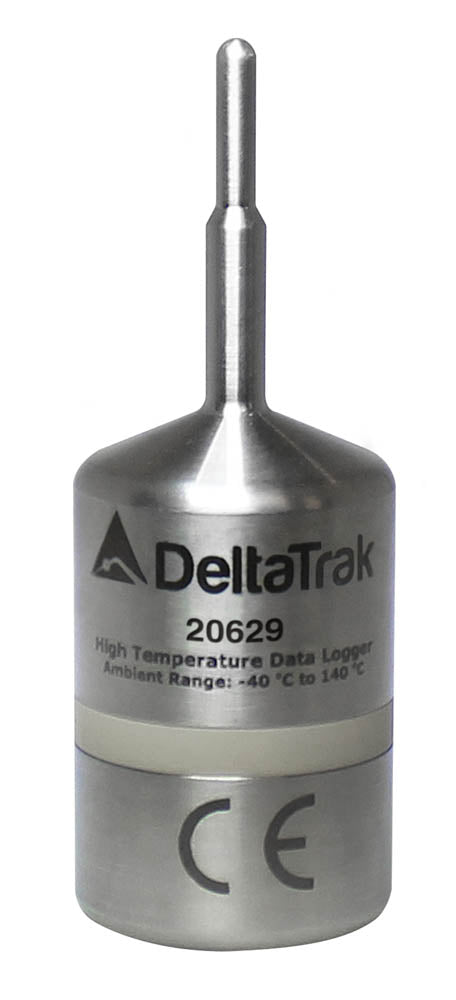

High Temp Stainless Steel Data Logger
High Temp Stainless Steel Data Logger
The High Temp Stainless Steel Data Logger is a rugged, high precision unit that requires minimal maintenance. It is easy to program, install and download. The non-volatile memory stores up to 32,700 data points, making it ideal for long term field deployment.
This reusable, compact logger is designed for extreme high and low temperature monitoring applications. It works well in wet environments such as retort sterilization, autoclave validation, and is also for HACCP programs, food processing, pasteurization, flash freezing and chill blast operations. Its rigid external probe has fast response time, with a platinum RTD sensor for highly accurate readings. The battery life indicator lets users know when to change the battery. Delta Manager is a multi-lingual software used to program logging parameters, starting and stopping the unit. Data is reported graphically and in table format, with summary analysis; it also exports to Excel for further calculations.
Specifications
Feature | Specification |
---|---|
Probe Measurement Range | -40°F to 284°F (-40°C to 140°C) |
Logger Operating Range | -40°F to 284°F (-40°C to 140°C), 0 to 100% R.H 0.002 to 100 PSIA Body of logger cannot exceed 284°F (140°C) |
Sensor | 100Ω Platinum RTD |
Temperature Resolution | 0.02°F /0.01°C |
Accuracy | ±0.18°F from 68°F to 284°F (±0.1°C 20°C to 140°C) ±0.54°F from -4°F to 67.98°F (±0.3°C -20°C to 19.99°C) ±0.72°F from -40°F to -4.02°F (±0.4°C -40°C to -20.01°C) |
Reading Interval | 1 reading every 1 second to 1 every 24 hours |
Data Capacity | 32,700 points |
Calibration | NIST traceable |
Battery | 3.6V high-temperature lithium battery, 1 year typical life, user replaceable |
Body Dimensions | 1.6" H x 0.97" dia. (40mm H x 24.6 mm dia) |
Probe Dimensions | 1.1" L x 0.125" dia (27mm L x 3.2mm dia) |
Weight | 4.2 oz (120 grams) |
Material | 316 Stainless steel |
Certification | CE Mark |
Waterproof Level | IP 68 |
System Requirements | XP SP3/Vista/Windows 7, Windows 8, Windows 10, 64 bit |
Programming and Download Requirements | Delta Manager Software Package with USB interface device and cables |
BATTERY WARNING: FIRE, EXPLOSION AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 302ºF (150ºC) |
