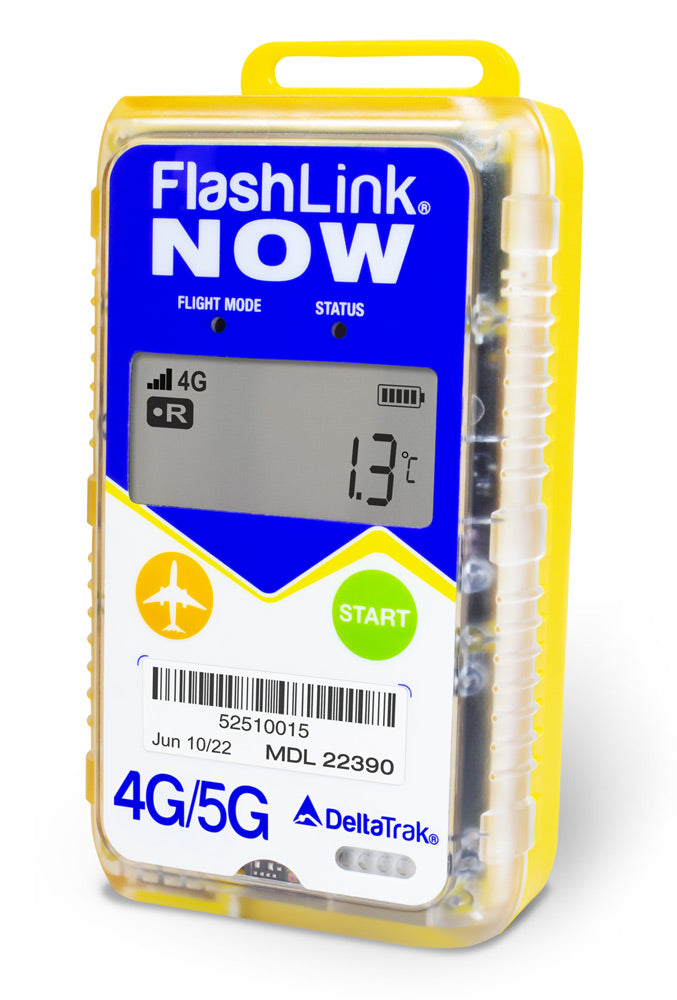

FlashLink NOW 4G/5G Real-Time In-Transit Logger
FlashLink NOW 4G/5G Real-Time In-Transit Logger
The FlashLink NOW 4G/5G is the first real-time in-transit logger to feature a large LCD screen, enabling users to view trip data stored in the device. This advanced logger uses the latest technology to monitor location, temperature, and light. Whether domestic or export, this device will enable shippers and receivers to locate cargo and estimate arrival. The light sensor alerts stakeholders to unauthorized cargo access, reducing the likelihood of theft during transport.
With an extended battery life, wider measurement range and larger memory capacity, the FlashLink NOW exceeds expectations. The device can be used to monitor temperature sensitive products with diverse parameters and offers the option to download a PDF of trip data when cellular signal is unavailable.
Specifications
| Feature | Specification |
|---|---|
| Temperature Range | -30°C to 70°C (-22°F to 158°F) |
| Temperature Accuracy | ±0.5°C from -10°C to 45°C (±0.9°F from 14°F to 113°F), ±1.0°C (2.0°F) Other |
| Temperature Resolution | 0.1°C/°F |
| Temperature Sensor Type | Internal Digital Temperature Sensor (NIST traceable) |
| Light Sensor Range | 0 to 52000 lux |
| Light Detecton Accuracy | 0.01 lux |
| Usage Type | Single-use |
| Data Capacity | Max 28800 Readings |
| Logging Interval | 10 Min. |
| Data Upload Interval | 60 Min. |
| Trip Duration | 60-Day (based on logging and uploading intervals) |
| Cellular | Global LTE Cat-1 for 4G/5G network, with 2G Fallback |
| SIM | Internal Embedded (Global Data Roaming) |
| Power Source | Lithium-ion battery, meets UN38.3 |
| Battery Shelf Life | 1 year |
| Logger Dimensions | 4.05in x 2.41in x 1.18in (103mm x 61.3mm x 30mm) |
| Weight | 4.6 oz (130 grams) |
| Waterproof Rating | IP64 |
| Certification | FCC, RoHS, NIST traceable temperature accuracy |
| PDF Report Backup | Micro USB to USB cable to download full trip PDF report |
