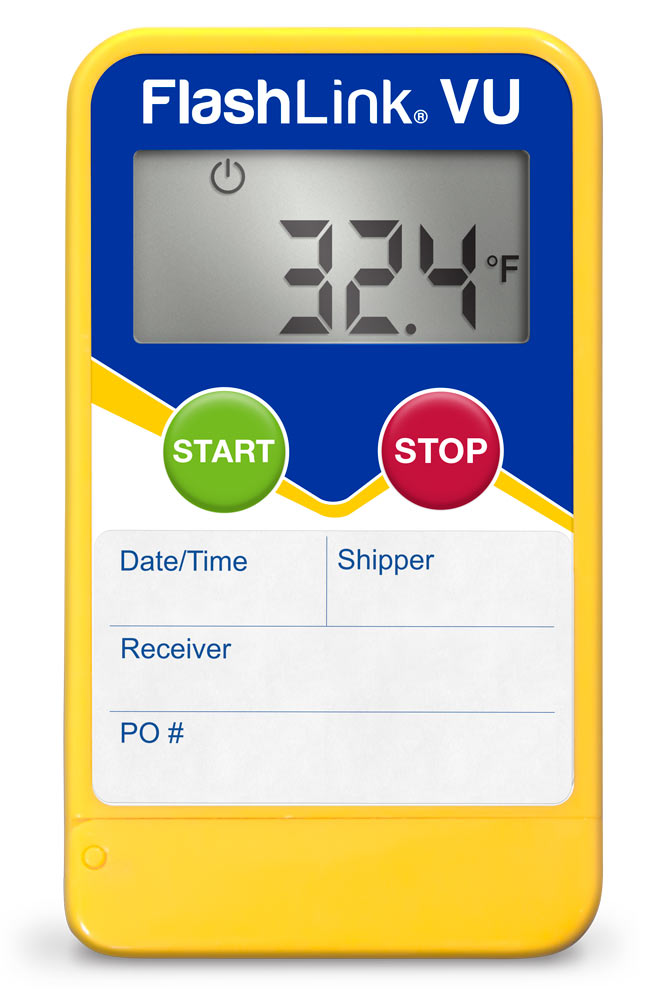

FlashLink VU In-Transit Logger
FlashLink VU In-Transit Logger
The FlashLink® VU logger allows for access to temperature history data without having to stop the unit or download the data. DeltaTrak's patented Shadow Log™ feature guarantees temperature history data even if the operator fails to start the logger. The single-use FlashLink® VU temperature logger is packaged in a highly visible yellow sleeve with easy to follow instructions and helps the receiver locate the logger very quickly.
The new FlashLink® VU logger is the ideal device for recording storage and transport conditions of temperature-sensitive products. This in-transit temperature logger has a large easy to read LCD display that provides immediate temperature status information and trip statistics including upper and lower temperature limits, cumulative duration of any temperature excursions, highest temperature, lowest temperature, and average temperature.
Models
Models °F | Recording Period | Logging Intervals |
---|---|---|
20741 | 5-Day | 1 min 54 sec |
20742 | 15-Day | 5 min 40 sec |
20743 | 45-Day | 16 min 58 sec |
20744 | 75-Day | 28 min 16 sec |
Specifications
Feature | Specification |
---|---|
Measurement Range | -40°F to 150°F (-40°C to 65°C) |
Temperature Resolution | 0.1°F/°C |
Accuracy | ±1.0°F from 14°F to 77°F (±.5°C from -10°C to 25°C); ±2.0°F above 77°F (±1.0°C above 25°C) ±2.0°F below 14°F (±1.0°C below -10°C) |
Data Capacity | 3824 points |
Data Download Time | 5 seconds typical for 3800 points |
Factory Programmable | High & Low levels over entire range, displayed on LCD |
Battery | (CR2032) 3V Lithium/18 months |
Dimensions | 1.962" x 3.423" x .575" (50mm x 87mm x 15mm) |
Casing | ABS plastic |
Weight | 1.6 oz. (45.36 grams) |
Shock Resistance | Withstands 3-foot (1 meter) drop to hard surface |
Certification | RTCA/DO 160 compliant, CE Mark, NIST traceable, ROHS Compliant |
Display | LCD, Red LED Alarm |
Waterproof Rating | IP56 |
Storage Conditions | -4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o condensation |
System Requirements | Windows PC with current operating system, FlashLink Data Manager, Adobe Reader |
Download Requirements | FlashLink 8-Pin to USB High Speed Adapter Kit |
