Teltonika Networks

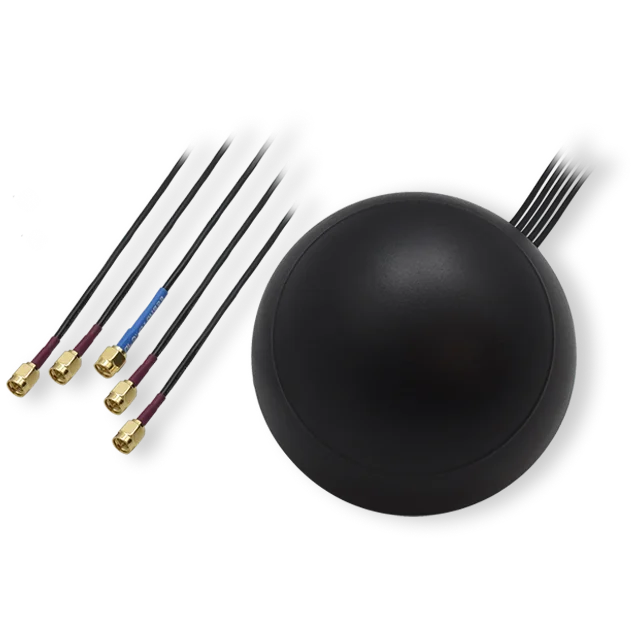

Combo Quad Mobile / GNSS Roof SMA Antenna
Combo Quad Mobile / GNSS Roof SMA Antenna
| GNSS ANTENNA | |
|---|---|
| Frequency Range | 1575.42 MHz |
| Polarization | RHCP |
| Impedance | 50 Ω |
| LNA Gain | 28±2 dB |
| Supply Voltage | 3-5 VDC |
| Current Consumption | < 15 mA |
| V.S.W.R | <2.0 |
| Connector | SMA Male |
| Cable | 1 x RG174, 3000 mm |
|
LTE MIMO ANTENNA |
|
|---|---|
| Frequency range | 698-960 / 1710-2690 MHz |
| Polarization | Linear |
| Impedance | 50 Ω |
| Gain | 3 dBi |
| V.S.W.R: | <3.0 |
| Impedance: | 50 Ω |
| Connector | SMA Male |
| Cable | 4 x RG174, 3000 mm |
|
MECHANICAL / ENVIRONMENTAL |
|
|---|---|
| Radome material | ABS |
| Radome ingress protection rating | IP67 |
| Mounting method | Screw |
| Operating temperature | -40 ⁰C to +85 ⁰C |
| Operating relative humidity | < 95 % |
| RoHS compliant | Yes |
| Weight | 540 g |
