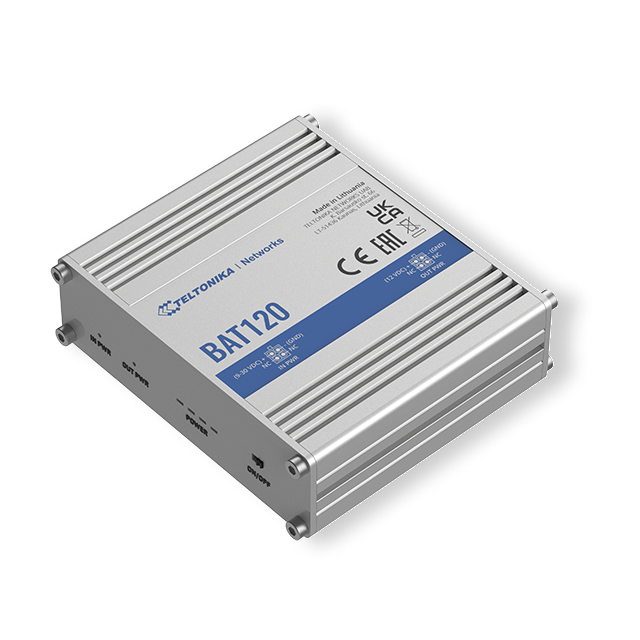

BAT120 - Uninterruptable Power Supply

Power
Connector	4-pin industrial DC power socket
Input power/max charging current	Charger: max 4 W/300 mA (max battery charging current)
Input voltage range	9 - 30 VDC
Input protection	Reverse polarity protection, Overvoltage protection
Output voltage in passthrough mode	9 - 30 VDC
Output voltage in battery mode	12 VDC
Output protection	3A overcurrent protection
Max output power/current in battery mode	22 W/1.8 A
Battery capacity	2300 mAh 17 Wh

Physical Interfaces (Ports, LEDs, Buttons)
Power IN	1 x 4 pin DC connector
Power OUT	1 x 4 pin DC connector
Status LEDs	1 x IN PWR LED, 1 x OUT PWR LED, 4 x Power status LEDs
Switch	On/Off slider switch

Alarm Output
Alarm Output	1 x Active HIGH output, max output 12 V, 2.5 mA

General Characteristics
Lithium cells	2 x 18650 Li-Ion cells
Compatible devices	RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100

Physical Specification
Casing material	Aluminum housing
Dimensions (W x H x D)	100 x 30 x 85 mm
Weight	315g
Mounting options	DIN rail, flat surface placement

Operaton Enviroment
Operating temperature	0 °C to 45 °C

Regulatory & Type Approvals
Regulatory	CE/RED, UKCA, EAC
