4-Pin Power Adapter with I/O Access
4-Pin Power Adapter with I/O Access

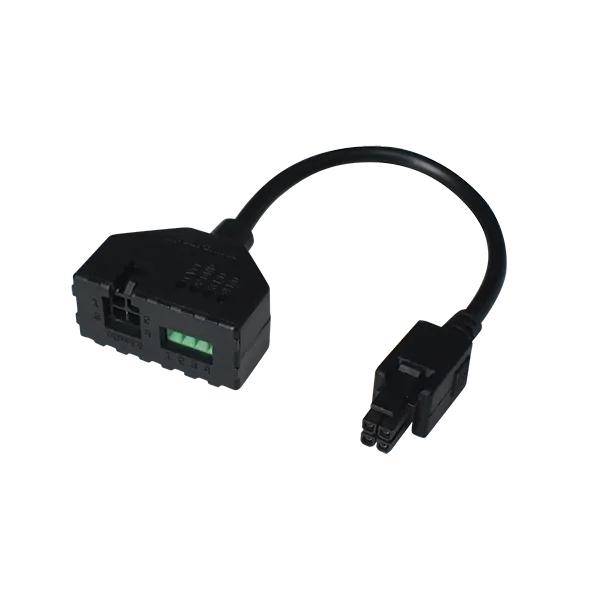

This 4-PIN power connector adapter allows you to easily access I/O functionality for compatible Teltonika Networks devices. It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs.
| General | |
| Input connector | 4-pin, 3 mm pitch and 4-way screw terminal block |
| Output connector | 4-pin, 3 mm pitch |
| Cable | 4 x 0.20 mm² (24 AWG), 100 mm |
| Screwdriver type | Micro slotted |
| Weight | 15 g. |
| *Connection Data |
|
| Conductor cross section solid / flexible | 0.14 - 0.50 mm² (26 - 20 AWG) |
| Conductor cross section flexible, with ferrule, with plastic sleeve | 0.25 - 0.30 mm² (23 - 22 AWG) |
| Pinout | 1 Pin: Power + 2 Pin: Ground - 3 Pin: Input/Output 4 Pin: Input/Output |
